Product Overview

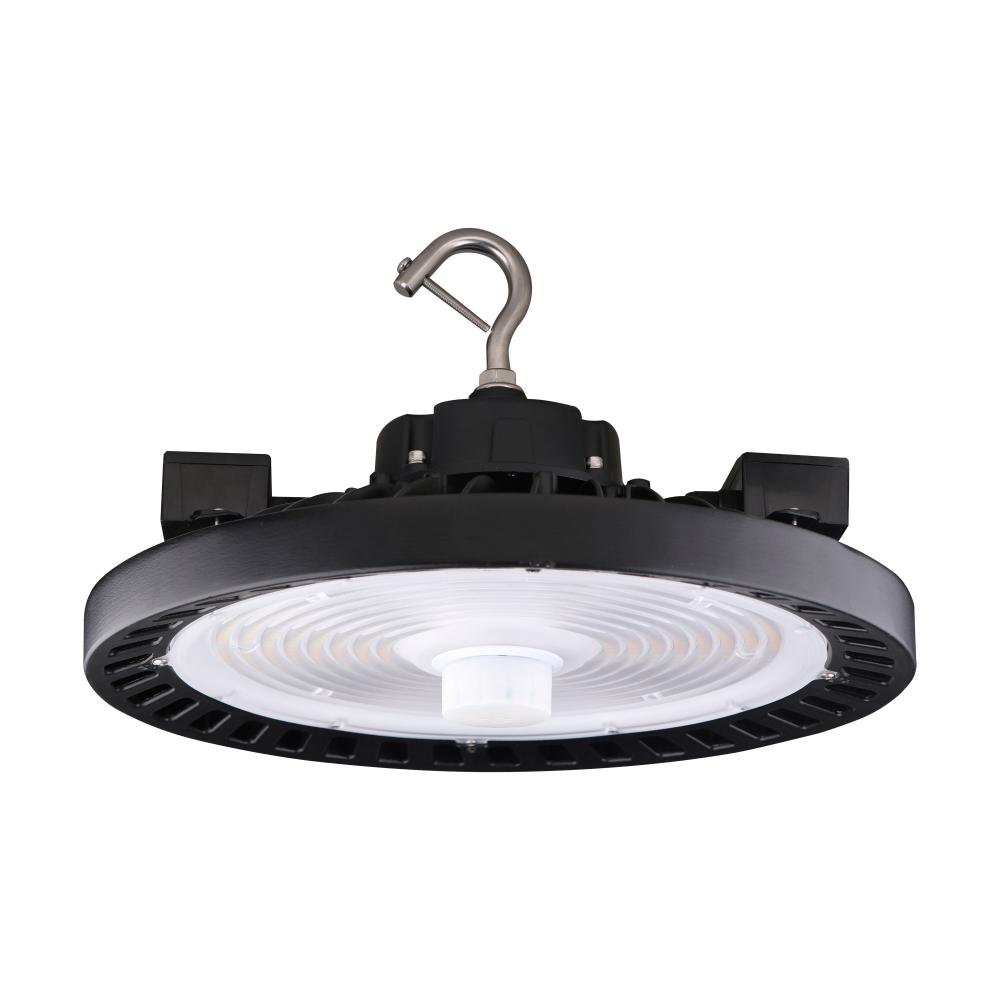

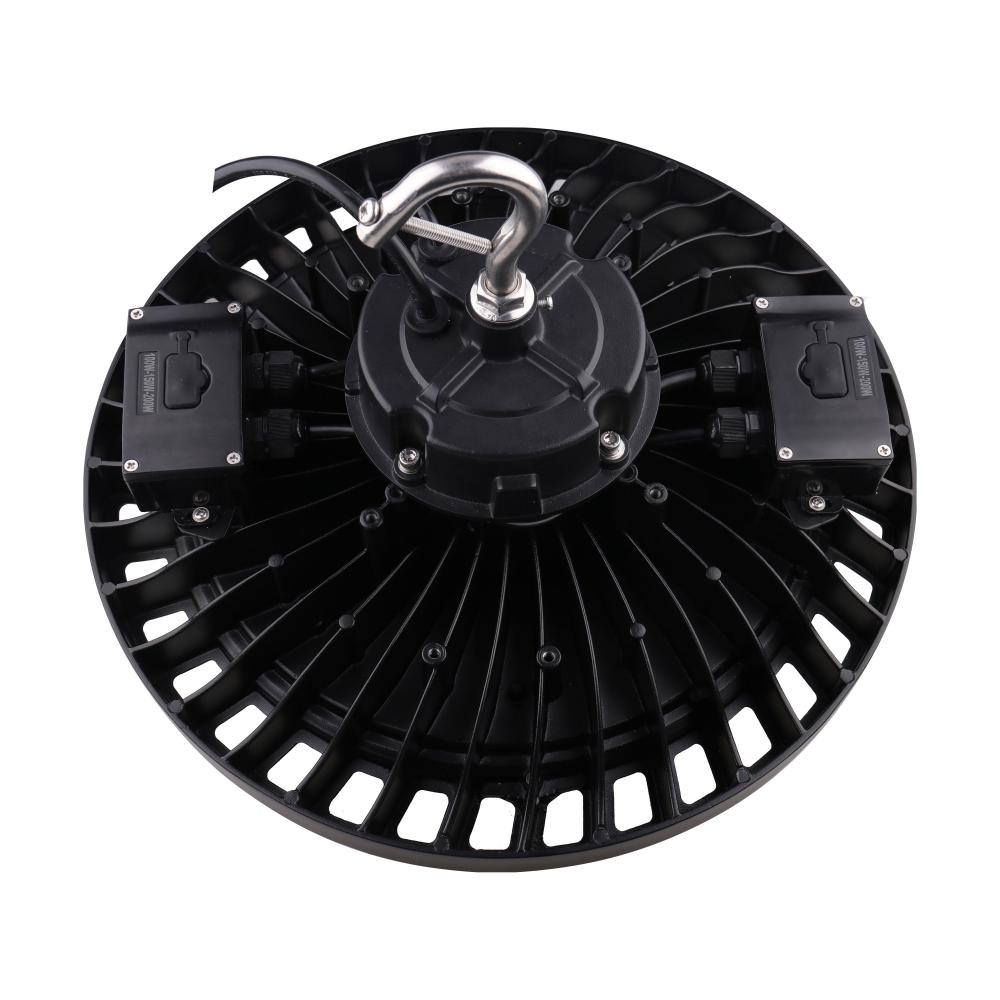

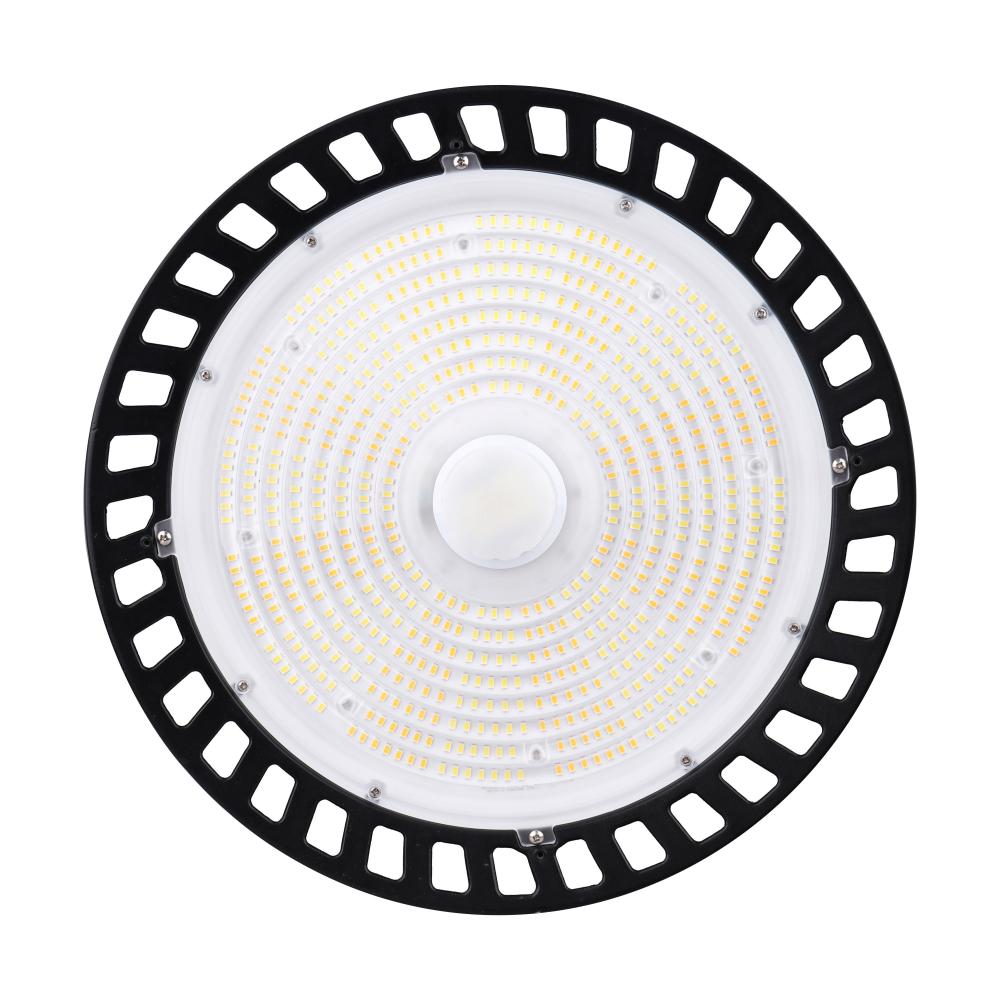

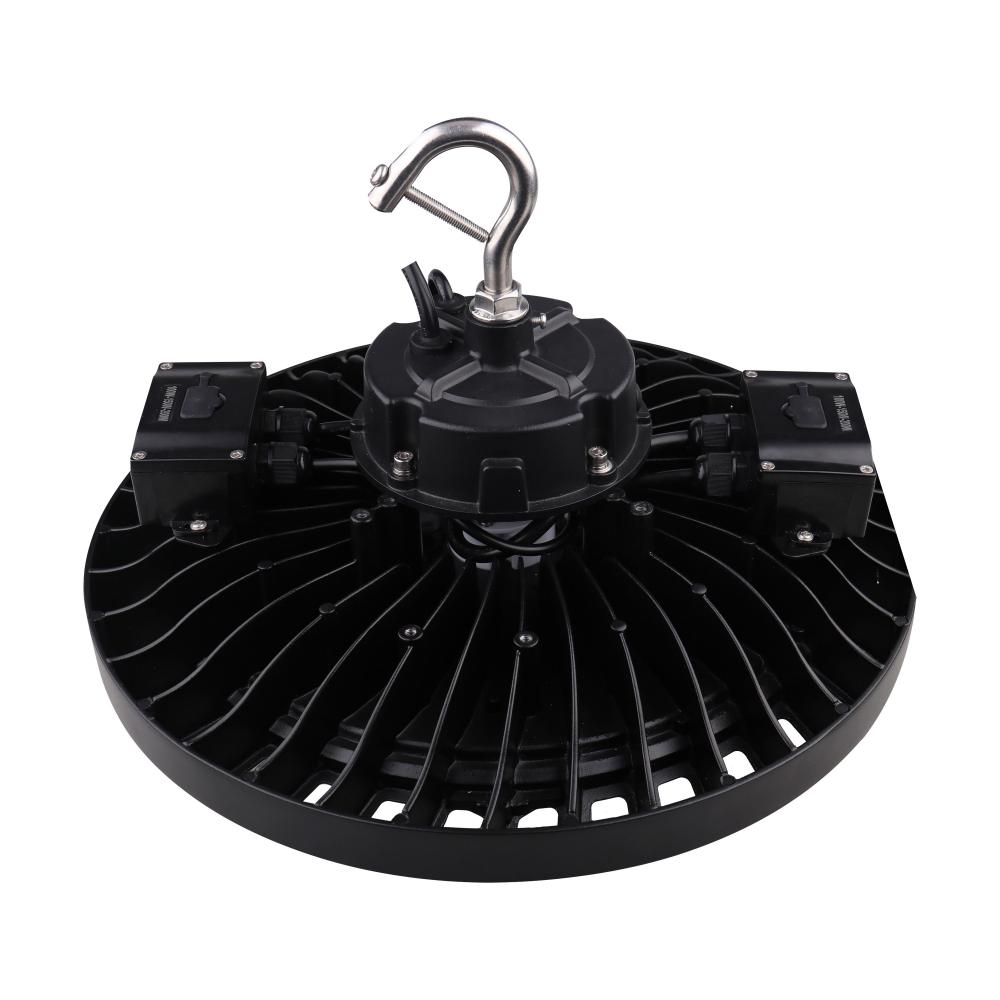

LED UFO High Bay; CCT Selectable 3K/4K/5K and Wattage Selectable 150W/175W/200W; 50,000 hours working life; Black Finish

Standard Information

Category:

Utility

Subcategory:

Other Utility

Finish:

Black

Style:

Traditional

Option:

LED

Prop 65

Refinement Options

Category:

Hi-Bay

Sub Category:

UFO

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Diameter:

14.57

Dimmable:

Yes-Dimmable

Each Height:

8.109999999999999

Each Length:

17.4

Each Width:

17.4

Lumens:

22200L-28800L

Tariff Code:

9405.40.9000

Warranty:

5 Year Limited - Fixtures

Wire Length:

72

Amps:

1.500-0.542/1.750-0.632/2.000-0.722A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

90

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Malaysia

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

High-Bay Luminaires for Commercial and Industrial Buildings

Each Cube:

1.4209

Each Quantity:

1

Efficacy:

148.00/145.71/144.00 LPW

FCC Compliant:

Yes

Feature 1:

Wattage and CCT Selectable

Feature 2:

Integrated Sensor Port

Feature 3:

IP65

Feature 4:

6KV Surge Protection

Feature 5:

0-10V Dimming

Feature 6:

50,000 Hours

Feature 7:

5 Year warranty

Finish Family:

Black

HID Equiv:

400W/450W

Housing Color:

Black

Impact Rating (IK):

IK08

Incandescent Equivalent:

1000W/1500W/2000W

Indoor Outdoor:

Indoor

IP Rating:

IP65

JA8 Compliant:

No

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Long Description:

The Nuvo 65-771R1 wattage and CCT selectable LED high bay UFO can meet all your lighting needs. This dimmable bulb comes in a black finish made of die cast aluminum with a polycarbonate lens. This durable LED fixture has a 90 degree beam spread and deliver

Material:

Die-Cast Aluminum

Mounting Procedure:

Ceiling

NSF Approved:

Yes

Operating Temp:

-40C (-40F) to +50C (+122F)

Order In Multiples Of:

1

Pack Type:

Box

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Introducing our newest wattage and CCT selectable UFO. With a wattage selectability of 150W/175W/200W and CCT selectability of 3000K/4000K/5000K, this fixture can meet all your lighting needs. Other features include an integrated sensor port for easy field

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

LED UFO HIGHBAY CCT & WATT ADJ

Sloped Ceiling Compatible:

No

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

15%

Wattage Selectable:

Yes

Weight Lb.:

9.23
